Name: Tuff Terrain Compact Air Hose Reel -12m
Brand: Tuff Terrain
SKU: TTCAHR-12
Price: 519.0 AUD
Availability: InStock

$519.00

Aussie Designed

Available to order
Backordered, shipping soon

SHOP NOW VIA

• 1 x Air Hose Reel

• 1 x Mounting bracket

• 1 x 90-degree mounting bracket

• 1 x 50cm air hose (compressor to reel)

• 1 x Female threaded ARB style air fitting

• 1 x Male threaded ARB style air fitting

• 1 x Female threaded Nitto style fitting

• 1 x Male threaded Nitto style fitting

• 1 x 90-degree air-fitting connector

• 1 x Banjo fitting

• 12m hose reaches around vehicle

• Compact reel saves canopy space

• Flat and 90° brackets for mounting

• EPDM hose handles heat and ozone

• Nylon braid protects against scuffs

• ARB and Nitto fittings for compatibility

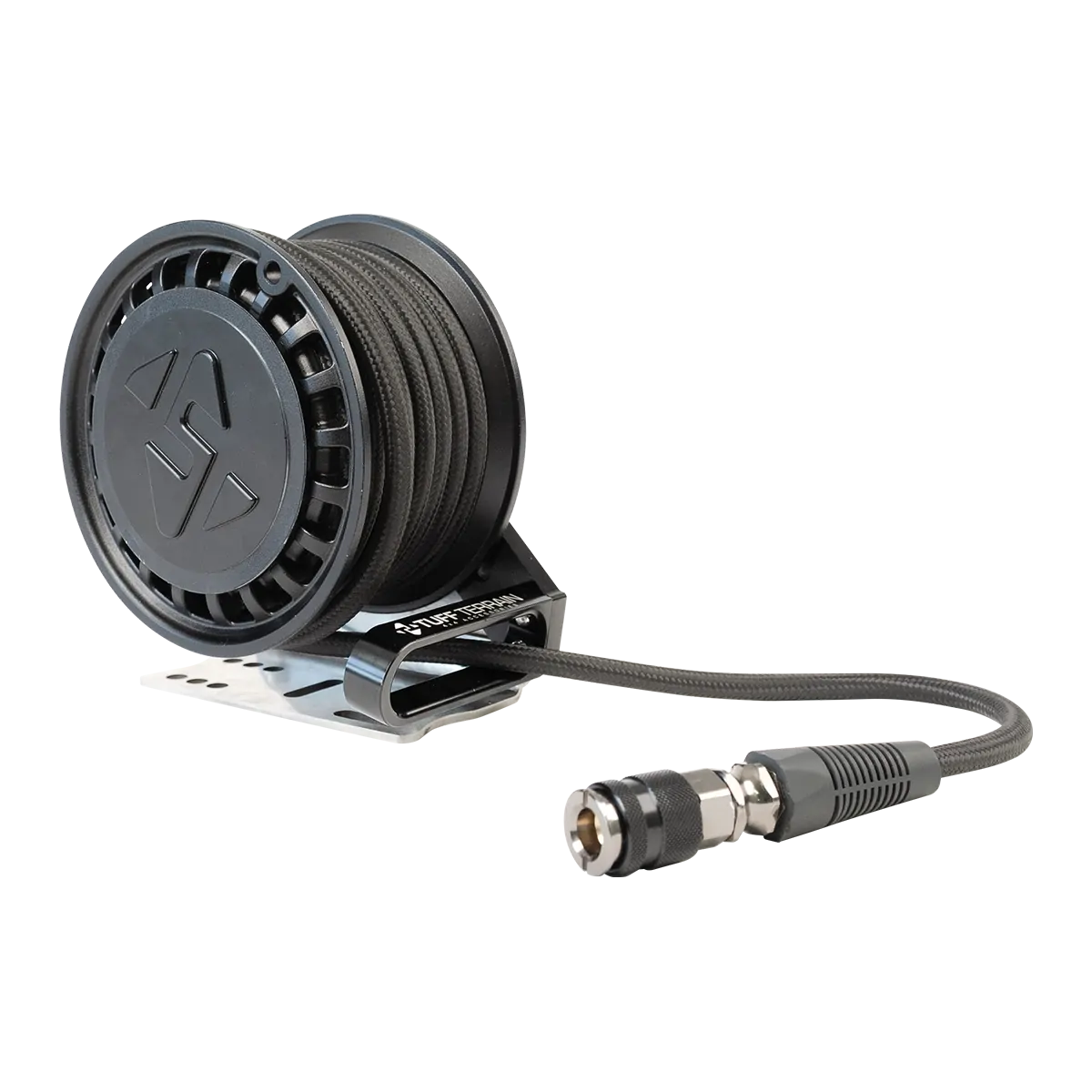

Tuff Terrain’s Compact Air Hose Reel keeps a 12m EPDM air hose neat, which means no more loose coils across the ute tray or shed floor. The reel suits 4WD touring setups and home workshops, as the flat and 90-degree brackets bolt onto canopies, drawers, or benches. The lock system holds the hose during travel, so it stays put over corrugations or around town. ARB-style and Nitto-style fittings hook straight into common compressors.

The aluminium body is built tough to handle bumps from the bush to the beach. The EPDM rubber hose handles heat and ozone, which helps it go the distance in Aussie conditions. A nylon braid outer protects against cuts and scuffs as the hose runs past other gear. The aluminium guide feeds the hose evenly back onto the drum, making pack-up smooth every time. Smart buy if you want tidy, ready air on tap.

Q: Can I use this reel with any air compressor?

A: You can use it with most compressors that operate at or below 220 PSI and accept ARB or Nitto style fittings. The kit includes multiple threaded fittings that match many 4WD and workshop compressors. If your compressor uses a different standard, you may need an adaptor. Always check pressure ratings on the compressor and hose before use.

Q: Is the hose suitable for water or pressure washer use?

A: No, the hose suits compressed air only. The internal EPDM rubber and fittings are selected for air pressure, not high-pressure water. Pressure washers usually exceed 220 PSI, which can damage the hose or reel. For water or washer applications, use hose reels designed and rated for that purpose.

Q: Where can I mount the Compact Air Hose Reel on my vehicle?

A: You can mount it on flat surfaces or at 90 degrees using the supplied brackets. Common spots include canopy walls, drawer tops, or tray headboards. Make sure the structure supports the reel and hose weight. Allow space around the drum for the hose to wind and unwind without snagging.

Q: What hose size and fittings come on the reel?

A: The main hose is 6mm ID x 10mm OD with a braided nylon cover. The kit includes ARB-style and Nitto-style threaded fittings plus a 50cm link hose. This combination suits many 4WD tyre inflation and light air tool setups. Always confirm your existing couplers match ARB or Nitto standards.

Q: Is the Compact Air Hose Reel CE certified or RoHS compliant?

A: The manufacturer lists this gear for use in Australia and New Zealand only. CE or RoHS compliance is not stated in the supplied information. For use in US or EU workplaces that require CE or RoHS documentation, confirm requirements locally. Terms and conditions apply.
