Name: Tuff Terrain Self Retracting Compact Air Hose Reel - 7m
Brand: Tuff Terrain
SKU: TTCAHR-A7
Price: 449.0 AUD
Availability: InStock

Tuff Terrain Self Retracting Compact Air Hose Reel - 7m

$449.00

Aussie Designed

Available to order
Backordered, shipping soon

SHOP NOW VIA

• 1 x Auto-Retract Air Hose Reel

• 1 x Flat mounting bracket

• 1 x 90-degree mounting bracket

• 1 x 50cm connector hose

• ARB-style and Nitto-style threaded fittings (male and female)

• 1 x 90-degree air fitting

• 1 x Banjo fitting

• Compact reel frees up storage space

• 7 m hose reaches around vehicles

• Auto retract system tidies hose fast

• Locking feature stabilises hose in transit

• EPDM and nylon hose handles abrasion

• ARB and Nitto fittings match common compressors

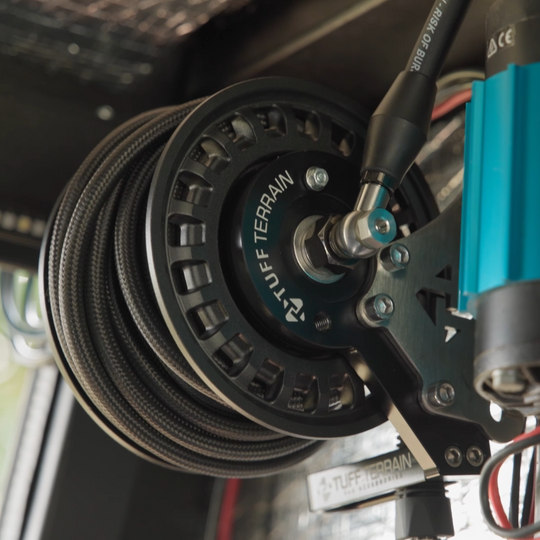

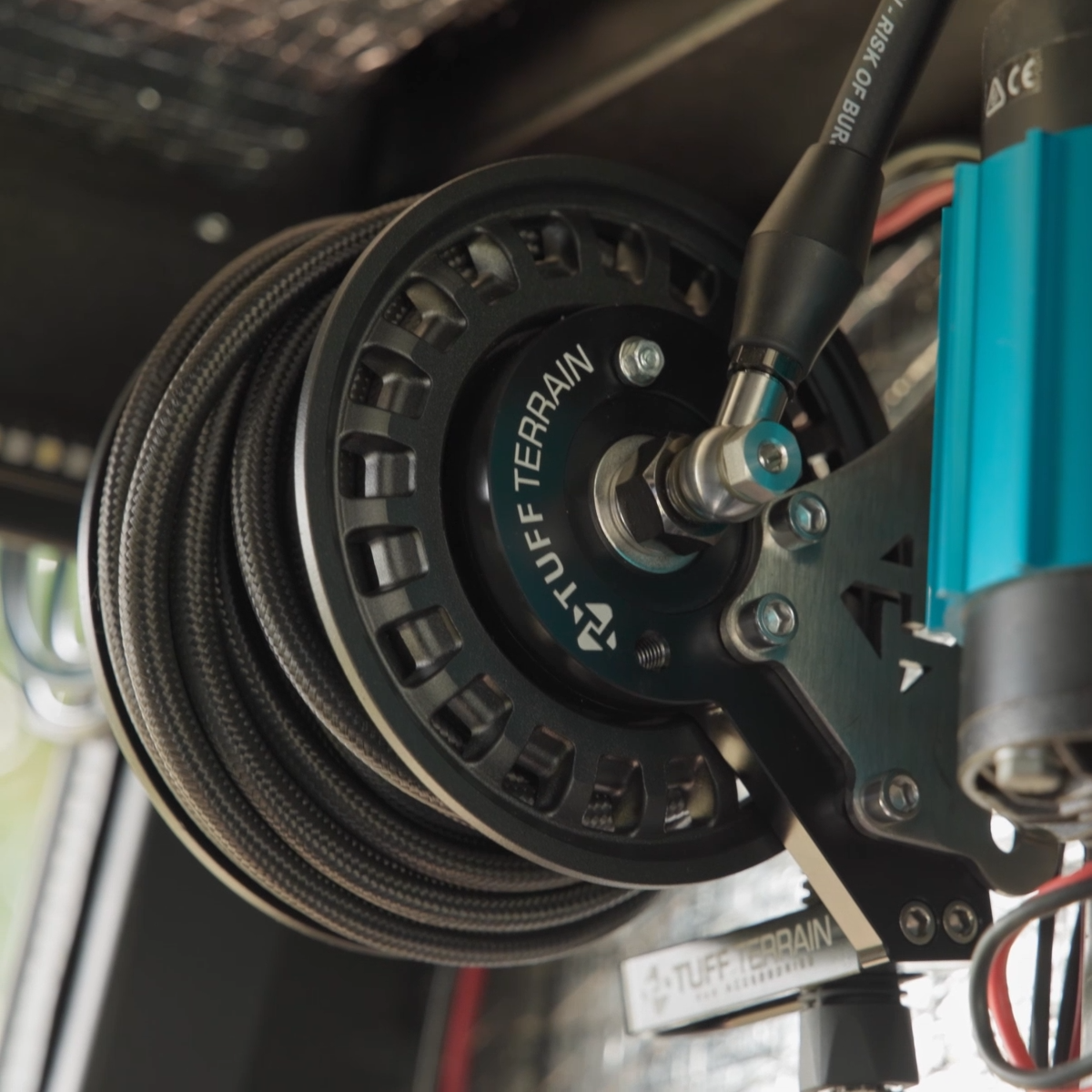

The Tuff Terrain self retracting compact air hose reel keeps a 7 m air line packed into a tight 150 mm drum, meaning you reclaim tray and canopy space while still running full-length hose. The auto-retract spring pulls the hose back in after use without manual winding, which makes it smart gear for quick tyre checks and air tools from the bush to the beach. The lock system holds your chosen length out, so the hose stays put while you get out there and make it happen.

An aircraft-grade aluminium body handles knocks and heat around compressors, which helps this reel go the distance trip after trip. The EPDM rubber hose with braided nylon outer deals with abrasion on drawers and guards, meaning less wear in real-world Aussie conditions. Stainless brackets give flat or 90-degree mounting options, so you can bolt it into trailers, canopies, or the workshop as part of a tidy, tested setup.

Q: Can I use this reel with water or a pressure washer?

A: No, this hose reel suits compressed air only. The EPDM and nylon hose construction targets air pressure up to 220 PSI, not water flow. Water introduces different pressure spikes and chemical exposure. A pressure washer also typically runs far higher pressures than this rating. Use a hose and reel rated specifically for water.

Q: What air compressors work best with this reel?

A: Most 12 V and workshop compressors that stay within 220 PSI work with this reel. The included ARB and Nitto-style fittings match many onboard and shop systems. The 50 cm connector hose links the reel to an existing outlet. Check your compressor outlet type and pressure rating before installation.

Q: Where can I mount the compact reel in my vehicle?

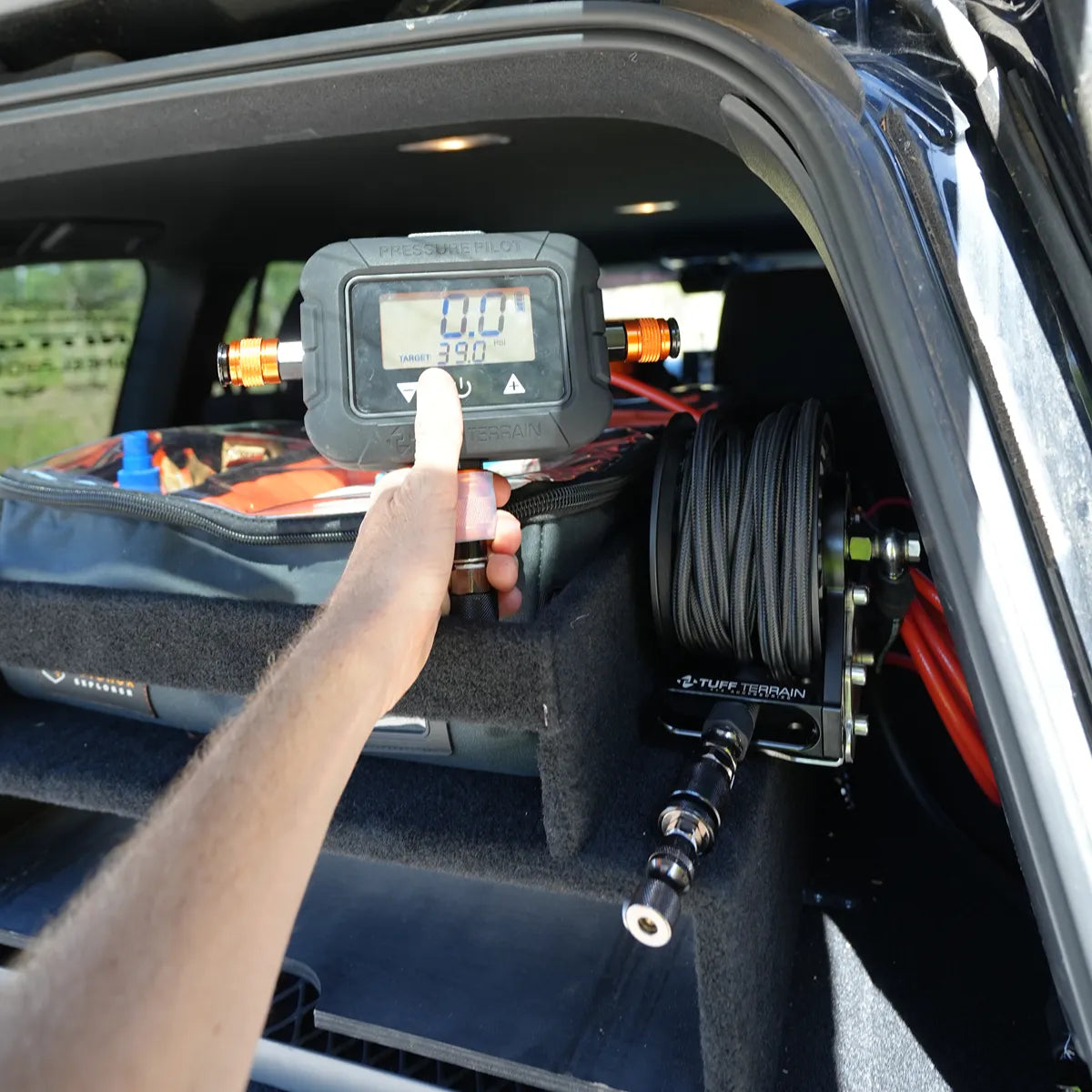

A: The stainless steel flat and 90-degree brackets support mounting on floors, walls, or canopy frames. The compact 150 mm drum fits under false floors or against drawer systems. Multiple bracket holes give options around existing gear. Make sure the reel sits within hose reach of your compressor.

Q: Does the reel lock while I am driving off-road?

A: Yes, the internal lock holds the hose inside the drum during transit. The mechanism grips the reel position when not in active payout. This setup helps prevent hose creep over corrugations. Always check the hose is fully retracted and latched before driving.

Q: Is any extra hardware needed for installation?

A: Basic mounting bolts or screws suited to your surface are required, as the brackets arrive pre-formed but without vehicle-specific fasteners. The included fittings and connector hose handle air connections. Choose fixings that match the tray, canopy, or workshop material. Follow normal workshop practice for drilling and corrosion protection.
